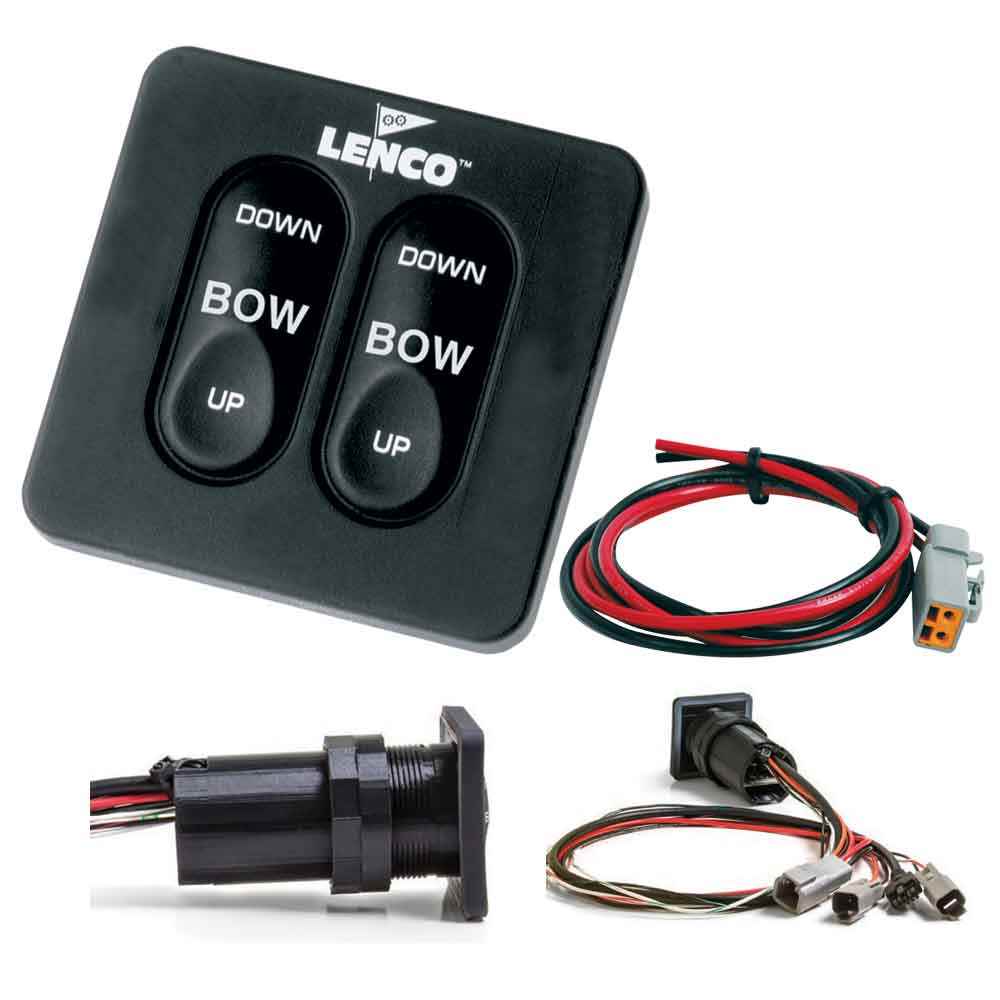

Standard Integrated Tactile Switch Kit w/Pigtail f/Single Actuator Systems
Standard Integrated Tactile Switch Kit with Pigtail for Single Actuator Systems
Complete your Lenco single actuator trim tab system with the latest, maintenance-free (ALL-IN-ONE) integrated tactile switch kit design. This NEW switch technology improves accuracy and integrates the control box functionality into the key pad bezel.Â
Features Include
- Simple, quick, Plug & Play installation
- Instant response
- Built-in retractor
- Low profile design
- Self-contained key pad with waterproof Plug & Play Deutsch connectors
- Wiring harness length 30" (76.2 cm) from the back of the switch bezel
- 36" power pigtail
- 2 1/16" hole cut-out size, overall key pad size of 2.75" x 2.75"
- 4.08" clearance required from the back of the key pad's mounting location
ATTENTION:Â REPLACEMENT KEY PADS & CONTROL BOXES FOR 2016 & PRIOR SWITCHES ARE NOT COMPATIBLE WITH THIS SWITCH KIT.
Replacement parts are available and are sold separately.Â
Specifications
- 3 Year Warranty
- System Type: Single Actuator
- Compliance: CE Certified
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
